  • SKM73160-Horizontal axis rotary table surface grinder
  • Editor:xghlDate:2014-09-17 14:20 click:
  • 产品详情
  • 产品参数

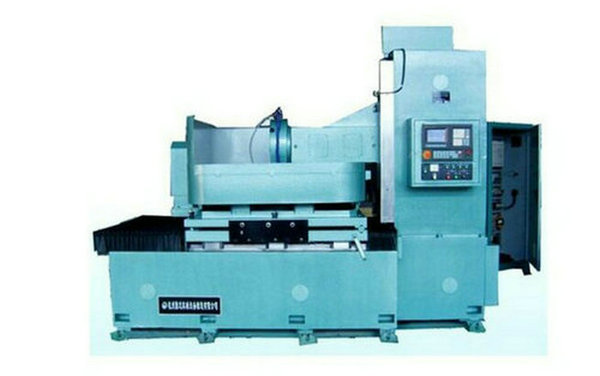

SKM73160 horizontal axis CNC rotary table surface grinder grinding reciprocate use in the column, as in the form of linear motion of the carriage on the rail bed.

Original rigid grinding spindle bearing structure design, 15KW motor, frequency control, the maximum speed of 3000rpm.

To grinding using hybrid spindle design

Table with a centering bearing position, rotate in a fixed position, hydrostatic guideways rigid float. By the motor through the gear box, Ribbed, Ribbed wheel drive, motor power 7.5KW4 level. Workbench maximum speed 120R / MIN.

Horizontal feed and vertical feed means, a servo motor (≥15Nm), the speed reduction mechanism, a ball screw, of which the vertical axis or the self-locking braking device.

Grinders are set at each rail lubrication points are lubricated by an electric lubrication pump. To separate table for the tank, into the back line through the towline rational distribution.

Magnechuck ring with 7 copper coil design, the surface faceplate using concentric design, customers can also customize the faceplate. Surface magnetic uniform and equipped with an automatic charge demagnetization device with a magnetic adjustable-loss protection and other functions.

Cooling water tank with 100L magnetic separator, cooling circuit via the towline of cool location. Magnetic separation motor power 0.12KW, coolant pump motor power 0.25KW.

Using an independent electrical cabinet, independent console, CNC system control, two-axis, automatic control, auto-complete cycle of grinding.
