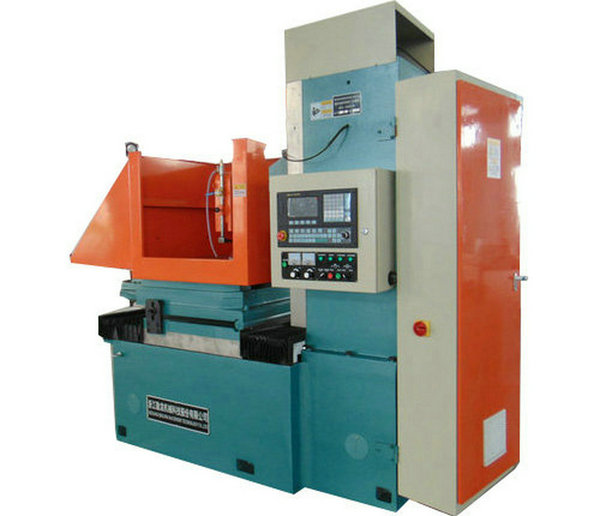

SKMG7350 horizontal axis rotary table surface grinding machine is my company absorb advanced grinding machine structure and manufacturing technology to develop a new series of horizontal-axis rotary table surface grinder. Working round table diameter ф500mm, using the table in the bed rotation frequency, the carriage moves back and forth along a horizontal, vertical grinding head carriage moves along the feed layout patterns. Grinding spindle bearings with precision bearings, good rigidity, high accuracy.

Bed, column layout on linear guides and ball drive unit, using precision positioning servo motor. Stable overall structure is compact, high accuracy, reliable performance, good manufacturing processes, and easy to operate.

Using peripheral grinding wheel, the workpiece can get up and down the two planes parallel precision, dimensional accuracy and surface roughness. This machine is suitable for grinding circular parts, valves for precision machining, saw blades, cutters and other tools, tool.

1, SKMG7350 horizontal axis CNC rotary table surface grinder grinding reciprocate use in the column, as in the form of linear motion of the carriage on the rail bed.
2, rigid grinding spindle bearing structure design, 11KW motor drive, the maximum speed 3000rpm. Wheel Model (Ф350 × 40 × Ф127mm).
3, electromagnetic table, diameter Φ500mm, table with centering bearing positioning, rotating in a fixed position, using the plane bearing rotation. By the motor through the gear box, Ribbed, Ribbed wheel drive, motor power 2.2KW4 level. Table speed 40-460R / MIN adjustable.
4, cross feed and vertical feed device, by a servo motor (≥10N.m), gear box, ball screws, linear guides. In which the vertical axis has a brake or self-locking device, and with a grating absolute coordinate positioning.
5, grinders are set at each rail lubrication points are lubricated by an electric lubrication pump. For the table with a separate supply tank, into the back line through the towline rational distribution.
6, magnetic chuck using copper coil design, the surface faceplate design using concentric circles and cut flowers, customers can also customize the faceplate. Surface magnetic uniform and equipped with an automatic charge demagnetization device with a magnetic adjustable-loss protection and other functions.
7, the cooling water tank with 100L magnetic separator, cooling circuit via the towline of cool location. Magnetic separation motor power 0.12KW, coolant pump motor power 0.25KW.
8, using an independent electrical cabinet, independent console, CNC system control, two-axis, automatic control, auto-complete cycle of grinding.
